| FEATURES |
● Single and double contact types are offered, and 15A switching capacity relay is used exclusive in automobile control switching box.
● Nominal power 1100mW.
● Operating power 400mW and 535mW |
|
|
|
|
 |
UL FILE NO:
TUV FILE NO:
CE DECLARATION OF CONFORMITY
CQC FILE NO:
|
|
|
| ORDERING INFORMATION |
| 965 |
T |
- |
1C |
- |
12 |
D |
S |
|
|
|
|
|
|
|
| 1 |
2 |
|
3 |
|
4 |
5 |
6 |
|
|
|
|
|
|
|
|
1 |
Model Number
965 |
2 |
Optional
Nil = General Type
T = Twin Relay with Length Cover
|
3 |
Contact Arrangement
1A = 1 Form A (SPST-NO)
1B = 1 Form B (SPST-NC)
1C = 1 Form C (SPDT)
1U = 1 Form U (SPST-DM)
1V = 1 Form V (SPST-DB)
1W = 1 Form W (SPDT-DM-DB)
|
4 |
Coil Voltage
6-24V |
5 |
Coil Type
D:DC |
6 |
Enclosure
Nil = Open Type
S = Sealed Type
|
|
| |
| COIL RATINGS (at 20℃) |
COIL
TYPE |
Coil Nominal
Voltage (V) |
Coil
Resistance
(Ω+-10%) |
Pick-Up
Voltage (V)
<= |
Drop-Out
Voltage (V)
>= |
Nominal
Current
(mA) |
DC Standard Coils |
6 |
33 |
3.6 |
0.6 |
182 |
| 12 |
130 |
7.2 |
1.2 |
92 |
| 24 |
520 |
14.4 |
2.4 |
46 |
|
|
| * Max Continuous Voltage at 20℃:? 130% of Coil Nominal Voltage. |
CONTACT RATINGS |
| ●Contact Arrangement |
|
|
1 Form A(SPST-NO) |
|
1 Form B(SPST-NC) |
|
1 Form C(SPDT) |
|
1 Form U (SPST-DM) |
|
1 Form V (SPST-DB) |
|
1 Form W (SPDT-DM-DB) |
●Max. Switching Power |
|
|
|
1 Form A(SPST-NO) |
210W |
|
1 Form B(SPST-NC) |
140W |
|
1 Form C(SPDT) |
210W |
|
1 Form U (SPST-DM) |
140W |
|
1 Form V (SPST-DB) |
105W |
|
1 Form W (SPDT-DM-DB) |
140W |
●Max. Switching Voltage |
|
|
1 Form A(SPST-NO) |
14VDC |
|
1 Form B(SPST-NC) |
14VDC |
|
1 Form C(SPDT) |
14VDC |
|
1 Form U (SPST-DM) |
14VDC |
|
1 Form V (SPST-DB) |
14VDC |
|
1 Form W (SPDT-DM-DB) |
14VDC |
● Max. Switching Current |
|
|
|
1 Form A(SPST-NO) |
15 A |
|
1 Form B(SPST-NC) |
15 A |
|
1 Form C(SPDT) |
10 A |
|
1 Form U (SPST-DM) |
20 A |
|
1 Form V (SPST-DB) |
15 A |
|
1 Form W (SPDT-DM-DB) |
20 A |
●Contact Resistance |
|
|
1 Form A(SPST-NO) |
<= 100 mΩ |
|
1 Form B(SPST-NC) |
<= 100 mΩ |
|
1 Form C(SPDT) |
<= 100 mΩ |
|
1 Form U (SPST-DM) |
<= 100 mΩ |
|
1 Form V (SPST-DB) |
<= 100 mΩ |
|
1 Form W (SPDT-DM-DB) |
<= 100 mΩ |
●Resistive Load |
|
|
|
1 Form A(SPST-NO) |
|
|
1 Form B(SPST-NC) |
|
|
1 Form C(SPDT) |
|
|
1 Form U (SPST-DM) |
|
|
1 Form V (SPST-DB) |
|
|
1 Form W (SPDT-DM-DB) |
|
●Contact Material |
|
|
1 Form A(SPST-NO) |
Ag Alloy |
|
1 Form B(SPST-NC) |
Ag Alloy |
|
1 Form C(SPDT) |
Ag Alloy |
|
1 Form U (SPST-DM) |
Ag Alloy |
|
1 Form V (SPST-DB) |
Ag Alloy |
|
1 Form W (SPDT-DM-DB) |
Ag Alloy |
●Inductive Load |
|
|
1 Form A(SPST-NO) |
|
|
1 Form B(SPST-NC) |
|
|
1 Form C(SPDT) |
|
|
1 Form U (SPST-DM) |
|
|
1 Form V (SPST-DB) |
|
|
1 Form W (SPDT-DM-DB) |
|
●Pilot Duty Load |
|
|
1 Form A(SPST-NO) |
|
|
1 Form B(SPST-NC) |
|
|
1 Form C(SPDT) |
|
|
1 Form U (SPST-DM) |
|
|
1 Form V (SPST-DB) |
|
|
1 Form W (SPDT-DM-DB) |
|
●Rating Load |
|
|
1 Form A(SPST-NO) |
15A/14VDC |
|
1 Form B(SPST-NC) |
10A/14VDC |
|
1 Form C(SPDT) |
NO: 15A/14VDC NC: 10A/14VDC |
|
1 Form U (SPST-DM) |
20A/14VDC |
|
1 Form V (SPST-DB) |
15A /14VDC |
|
1 Form W (SPDT-DM-DB) |
NO: 20A /14VDC NC: 15A/14VDC |
●Tv Rating |
|
|
1 Form A(SPST-NO) |
|
|
1 Form B(SPST-NC) |
|
|
1 Form C(SPDT) |
|
|
1 Form U (SPST-DM) |
|
|
1 Form V (SPST-DB) |
|
|
1 Form W (SPDT-DM-DB) |
|
●Remark |
|
|
1 Form A(SPST-NO) |
|
|
1 Form B(SPST-NC) |
|
|
1 Form C(SPDT) |
|
|
1 Form U (SPST-DM) |
|
|
1 Form V (SPST-DB) |
|
|
1 Form W (SPDT-DM-DB) |
|
|
|
CHARACTERISTICS |
| ●Electrical Life |
100,000 |
●Mechanical Life |
10,000,000 |
●Initial Insulation Resistance |
Min. 100MΩ 500VDC |
●Contact Resistance (Initial) |
≤100mΩ |
●Operate Time |
≤6ms |
●Release Time |
≤3ms |
●Initial Dielectric Strength |
50/60Hz 750VAC 1 min. (between open contacts)
50/60Hz 500VAC 1 min. (between contacts and coil)
|
● Vibration Resistance |
Malfunction: 10 to 55Hz at Double Amplitude of 1.5mm
Destructive: 10 to 55Hz at Double Amplitude of 1.5mm
|
●Shock Resistance |
Malfunction: 10G (11ms) / Destructive: 100G(6ms) |
●Ambient Temperature |
－40℃～＋85℃ |
| ●Relative Humidity |
85% at 40℃ |
| ●Unit Weight |
Approx. 20g |
| ●Remark |
|
|

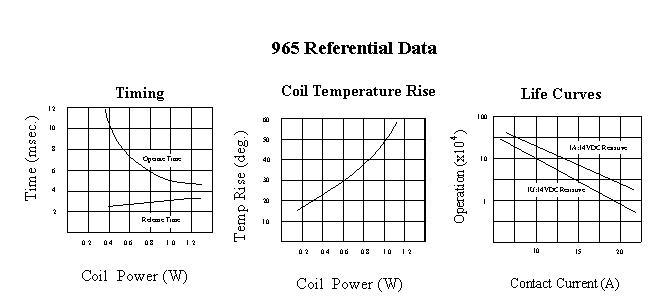

| Referential Data |
 |

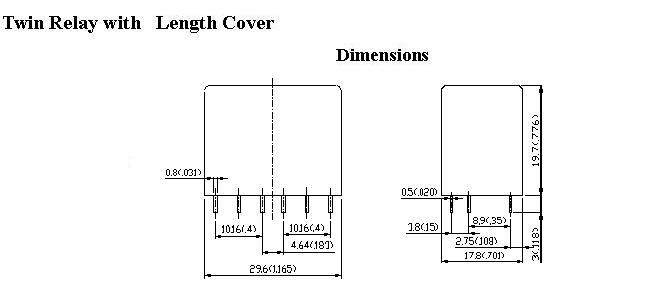

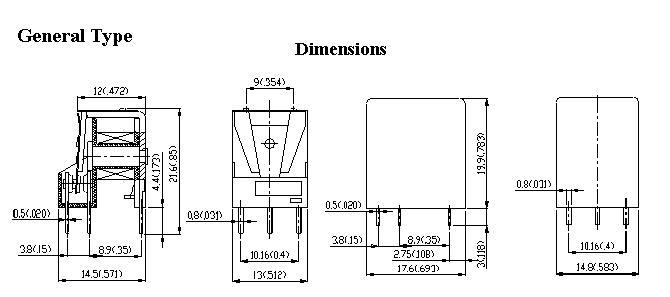

| OUTLINE DIMENSIONS |
 |
| OUTLINE DIMENSIONS |
 |

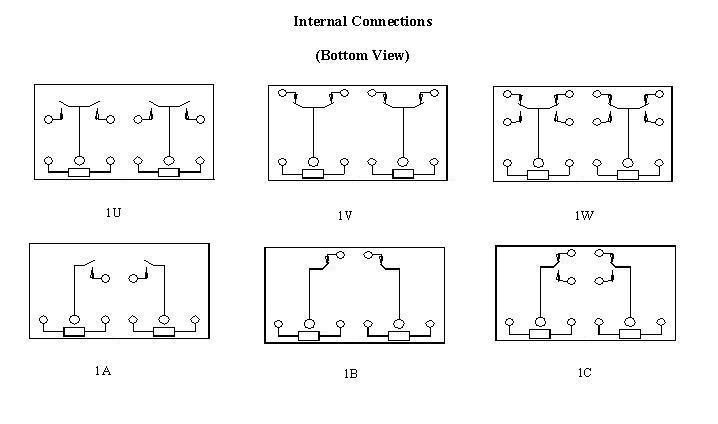

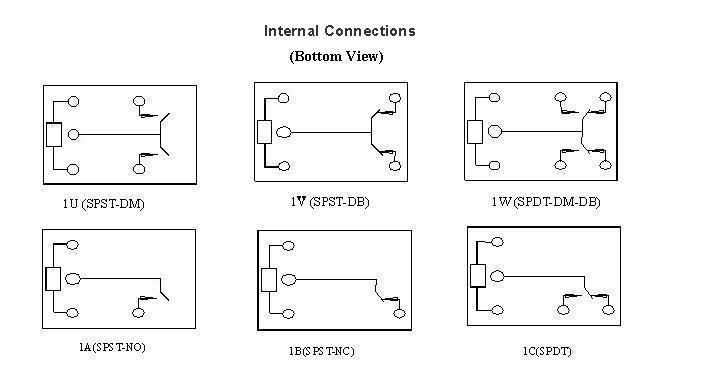

| Internal Connections |
 |
| Internal Connections |
 |

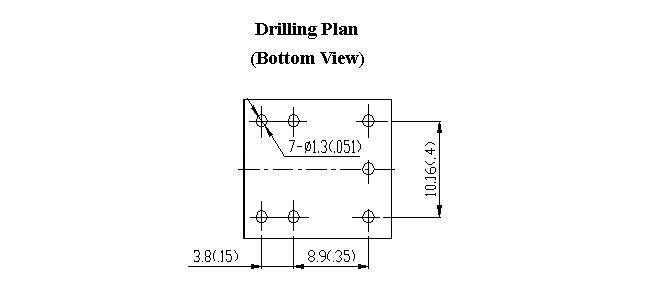

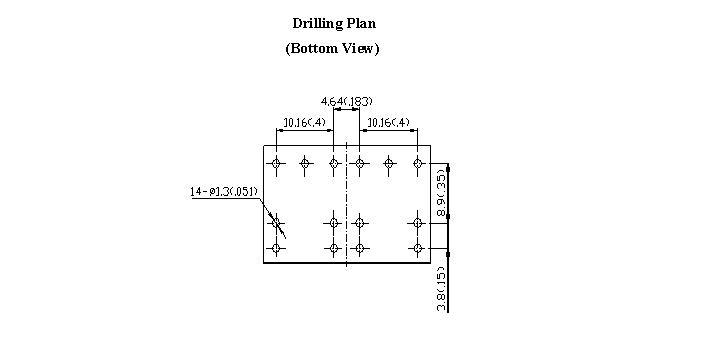

| Drilling Plan |
 |
| Drilling Plan |
 |
|
965 Series Relay.pdf Download  |
|
